How to Intercept iPhone Traffic for Mobile Applications that Bypass Proxy Settings

#ios

#security

#networking

#reverse-engineering

#tutorial

Abdullah Diaa

6 min readNovember 21, 2025

How to Intercept iPhone Traffic for Mobile Applications that Bypass Proxy Settings

Many iOS applications intentionally bypass system proxy settings for security reasons or to prevent traffic inspection. This guide demonstrates how to set up transparent proxying on macOS to intercept HTTPS traffic from iOS apps that ignore proxy configurations, useful for legitimate security testing, app debugging, and API analysis on your own devices.

⚠️ Important Legal Notice

This technique should only be used on devices you own for legitimate purposes such as:

Debugging your own applications
Security testing with proper authorization
Educational research in controlled environments
Understanding API behavior for apps you're developing integrations with

Why Apps Bypass Proxy Settings

📱 How Apps Bypass Proxies

Modern mobile applications often bypass proxy settings by:

Using low-level networking APIs that ignore system proxy configuration
Implementing certificate pinning
Using custom network stacks
Hardcoding direct connections to servers

This guide uses a transparent proxy approach that intercepts traffic at the network level, making it invisible to the application.

Prerequisites

✅ What You'll Need

A Mac running macOS
An iPhone (that you own or have permission to test)
mitmproxy installed on your Mac (brew install mitmproxy)
Administrator access on your Mac
USB cable for iPhone connection

Step 1: Install the mitmproxy Certificate on Your iPhone

First, configure your iPhone to trust mitmproxy's certificate authority:

Start mitmproxy on your Mac:
```
mitmproxy --listen-port 8889
```
On your iPhone, open Safari and navigate to `mitm.it`
Follow the iOS installation instructions to download the certificate profile
Install the profile:
- Go to Settings → General → Profile & Device Management
- Tap on the mitmproxy profile and install it
Enable full trust for the certificate:
- Navigate to Settings → General → About → Certificate Trust Settings
- Toggle on "Enable full trust" for the mitmproxy root certificate

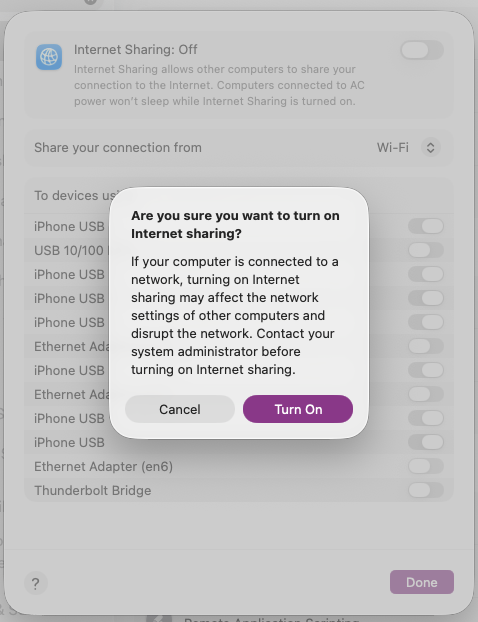

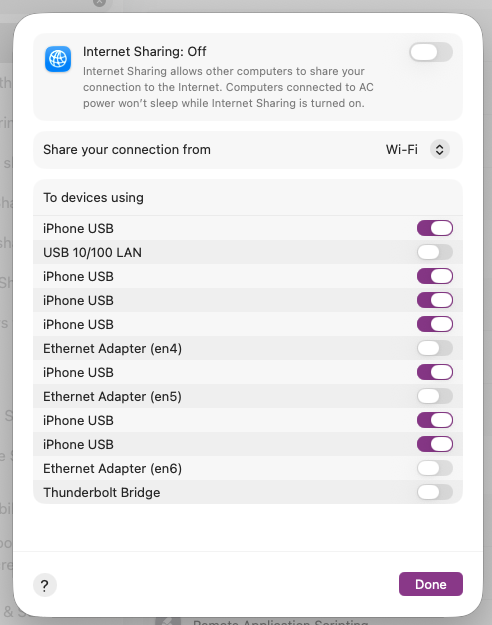

Set up your Mac to share its internet connection with your iPhone:

Connect your iPhone to your Mac using a USB cable
On your Mac, open System Preferences → Sharing
Click the info button (ⓘ) next to "Internet Sharing"

Configure sharing settings:
- Share your connection from: Wi-Fi
- To computers using: iPhone USB (check this option)

Enable Internet Sharing by checking the main checkbox

This creates a network bridge interface on your Mac that will handle all iPhone traffic.

Step 3: Identify the Bridge Interface

💡 Tip

When Internet Sharing is activated, macOS creates a bridge interface. To locate it:

/sbin/ifconfig | grep -A 5 bridge

Look for an interface named `bridge100` or similar with an IP address (typically `192.168.2.1`):

bridge100: flags=8a63<UP,BROADCAST,SMART,RUNNING,ALLMULTI,SIMPLEX,MULTICAST> mtu 1500
    options=3<RXCSUM,TXCSUM>
    ether fa:4d:89:96:7d:64
    inet 192.168.2.1 netmask 0xffffff00 broadcast 192.168.2.255
    inet6 fe80::f84d:89ff:fe96:7d64%bridge100 prefixlen 64 scopeid 0x1e

Verify that traffic is flowing through this interface:

sudo /usr/sbin/tcpdump -i bridge100

You should see packet activity when using your iPhone.

Step 4: Configure macOS Packet Filter for Transparent Redirection

Configure the packet filter to redirect all TCP traffic to mitmproxy:

Open the packet filter configuration file:
```
sudo vim /etc/pf.conf
```
Add this redirection rule in the correct position:
```
rdr on bridge100 inet proto tcp from any to any -> 127.0.0.1 port 8889
```
⚡ Placement
This line must be placed:
- AFTER any rdr-anchor "com.apple/*" lines
- BEFORE any dummynet-anchor lines
Reload the packet filter configuration:
```
sudo /sbin/pfctl -f /etc/pf.conf
```

Enable IP forwarding to allow traffic passthrough:

sudo /usr/sbin/sysctl -w net.inet.ip.forwarding=1

Step 5: Launch mitmproxy in Transparent Mode

Start mitmproxy with transparent mode enabled:

mitmweb --mode transparent --listen-host 127.0.0.1 --listen-port 8889

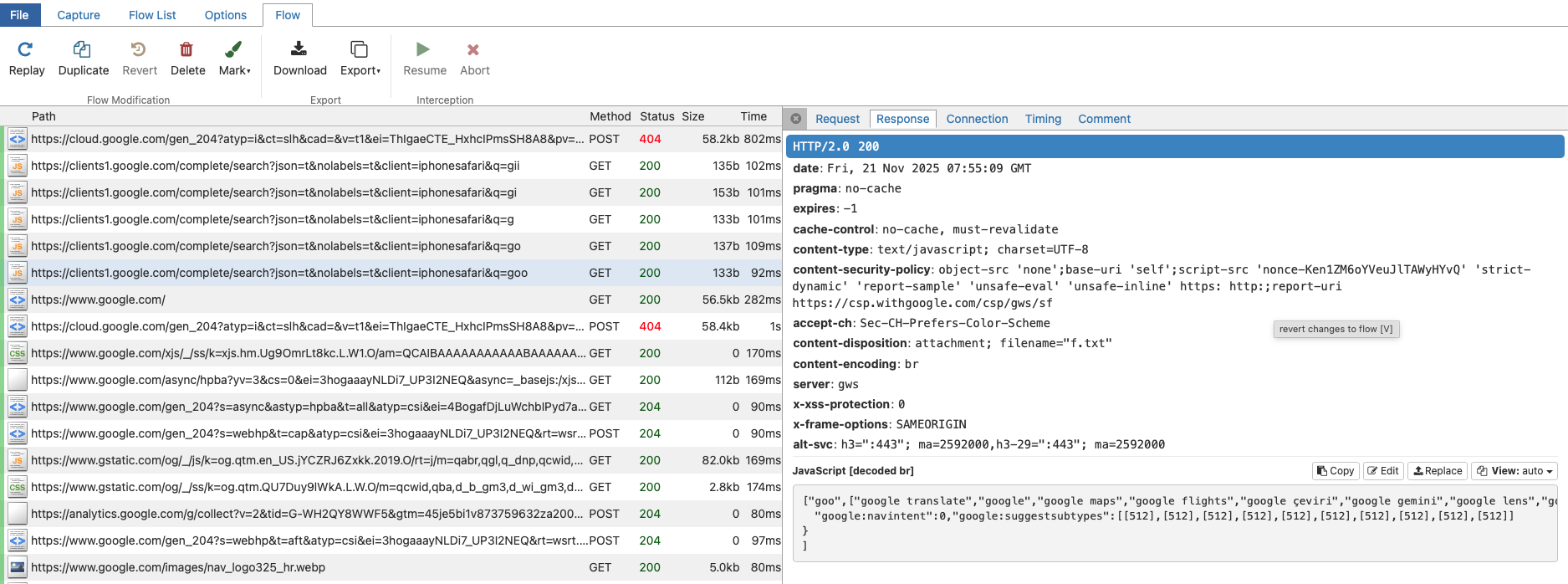

Success! You Can Now Intercept All HTTPS Traffic

Understanding the Transparent Proxy Approach

🔍 How It Works

Network-level interception
Traffic is redirected at the packet filter level, before applications can bypass proxy settings
Transparent operation
The iPhone doesn't know a proxy exists - it believes it's connecting directly to servers
USB tethering
Ensures all traffic routes through your Mac, preventing cellular data bypass

Keyboard Shortcuts and Tips

⌨️ Keyboard Shortcuts

In mitmproxy:

?

See all available commands

f

Filter traffic (e.g., ~d facebook.com to show only Facebook traffic)

i

Inspect request/response details

e

Export captured traffic

z

Clear the current view

Alternative Interfaces:

Use mitmweb for a web-based UI
Use mitmdump for command-line scripting

Troubleshooting Common Issues

No traffic appearing:

Verify the certificate is in "Certificate Trust Settings" and fully trusted
Confirm the bridge interface is active: `ifconfig bridge100`
Check packet filter rules are loaded: `sudo pfctl -s all`
Ensure IP forwarding is enabled: `sysctl net.inet.ip.forwarding`

Certificate errors in apps:

Some apps use certificate pinning - this requires additional techniques or may not be bypassable
Ensure you've enabled "full trust" for the mitmproxy certificate

Connection issues:

Disable Internet Sharing and re-enable it
Restart mitmproxy
Check firewall settings aren't blocking port 8889

Cleanup and Restoration

When finished testing:

Stop mitmproxy (press `q` and confirm)
Disable Internet Sharing in System Preferences
Remove the packet filter rule from `/etc/pf.conf`
Reload the original configuration: `sudo /sbin/pfctl -f /etc/pf.conf`
Optionally, remove the mitmproxy certificate from your iPhone
